Fuel filling

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 740i, 2015 BMW 740Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

Insert special tool 16 1 080 into fuel filler neck.

Special tool 16 1 080 has two different diameters for petrol/gasoline and diesel vehicles!

Slide extraction hose of extractor unit, approx. 40 cm into fuel filler pipe.

Fill fuel from suction extractor unit.

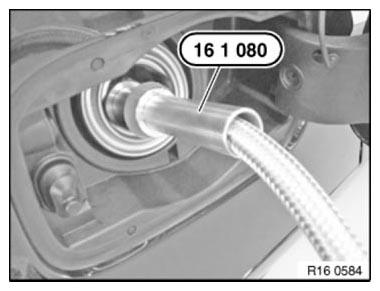

Fig 1: Inserting Special Tool (16 1 080) Into Filler Neck
G06889172Courtesy of BMW OF NORTH AMERICA, INC.
