67 32 620 Replacing fan for thigh support on front seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove padding for thigh support. See REPLACING UPHOLSTERY FOR THIGH SUPPORT (Sport seat) or REPLACING UPHOLSTERY FOR THIGH SUPPORT (Comfort seat).

Remove separating net (1).

Lift out fan (2).

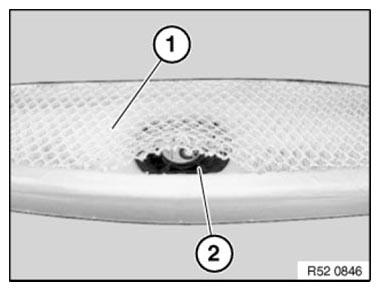

Fig 1: Identifying Front Seat Thigh Support Fan And Separating Net

Courtesy of BMW OF NORTH AMERICA, INC.
