67 32 600 Replacing fans for seat cushion on front seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove seat cover for driver's or passenger seat. See REPLACING SEAT COVER FOR DRIVER'S SEAT or REPLACING SEAT COVER FOR FRONT PASSENGER SEAT .

If necessary, remove SEAT OCCUPANCY MAT FOR FRONT PASSENGER SEAT

Unfasten plug connection.

Installation note:

Make sure fans have correct cable routing.

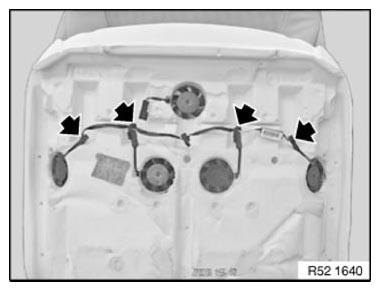

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows seat cushion and seat cover removed.

Raise separating net (1).

Pull faulty fans (2) out of seat cushion slightly and disconnect plug connections behind.

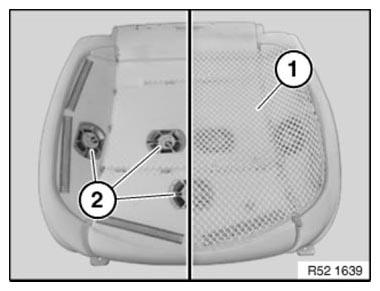

Fig 2: Identifying Front Seat Cushion Fans With Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
