67 61 007 Removing and installing/replacing drive with gearbox (rear) for actuating slide/tilt sunroof (rear)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Lower HEADLINER

Disconnect plug connection (1) and if necessary expose cable.

Release screws (2) and remove drive (3).

Tightening torque 51 13 1AZ .

Fig 1: Identifying Actuating Slid/Tilt Sunroof Drive With Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

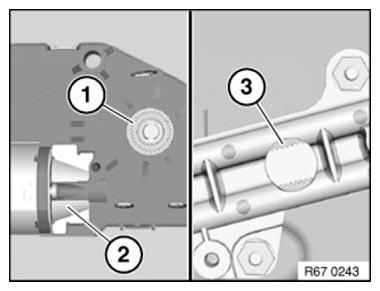

Insert gear (1) of electric motor with gearbox for operation of slide/tilt sunroof (2) exactly in gearing (3).

Fig 2: Identifying Gear Wheel, Actuating Slide/Tilt Sunroof And Gear Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Initialize SLIDE/TILT SUNROOF .
