67 61 005 Removing and installing/renewing drive with gearbox (front) for actuating slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ROOF SWITCH CLUSTER

NOTE: Secure drive with gearbox for actuating slide/tilt sunroof (3) against falling out.

Unfasten plug connection (1) and disconnect.

Release screws (2), tightening torque 54 13 1AZ .

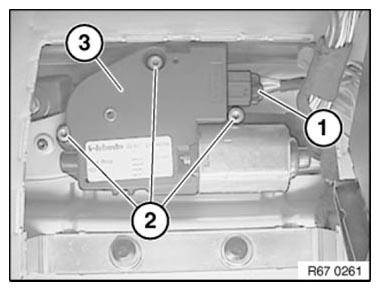

Fig 1: Identifying Plug Connection, Screws And Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screws (2) are microencapsulated.

Remove drive with gearbox for actuating slide/tilt sunroof (3).

Installation:

Insert gear wheel (1) of drive with gearbox for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

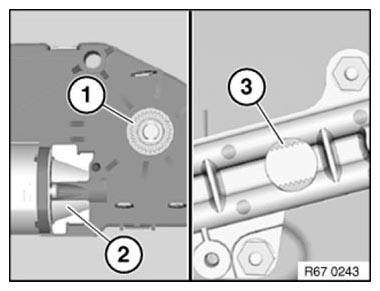

Fig 2: Identifying Gear Wheel, Actuating Slide/Tilt Sunroof And Gear Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Initialize SLIDE/TILT SUNROOF .

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING
