67 62 000 Removing and installing or replacing flat motor for front left or right power window unit: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SOUND INSULATION IN FRONT DOOR

NOTE: Position power window unit so that screws of flat motor are freely accessible

Remove POWER WINDOW UNIT

Release screws (1) and detach flat motor (2) from power window unit.

Installation:

Retaining pins (3) must not be released!

Fig 1: Identifying Power Window Unit Flat Motor With Mounting Screws And Pins

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To ensure tension-free installation of flat motor, observe the specified screwing sequence without fail.

Tighten first screw (1), then screw (2) and finally screw (3).

Tightening torque 67 62 1AZ .

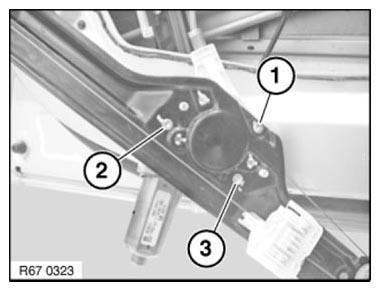

Fig 2: Identifying Power Window Unit Flat Motor With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
