54 12... Notes on greasing slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Use only RHF 1 lubricating grease (sourcing reference: BMW Parts Department) to grease the slide/tilt sunroof.

NOTE: Remove the old grease without fail before applying the new grease.

Apply grease only in the relevant area (new parts).

Grease the areas in the following left and right in each case.

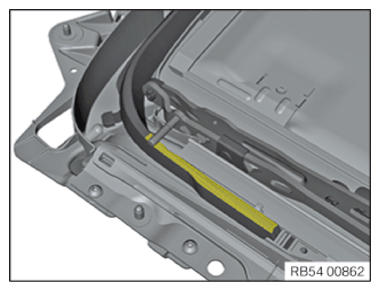

Contact surface at cowl panel.

Fig 1: Identifying Grease Applying Area On Contact Surface At Cowl Panel
G09928311Courtesy of BMW OF NORTH AMERICA, INC.

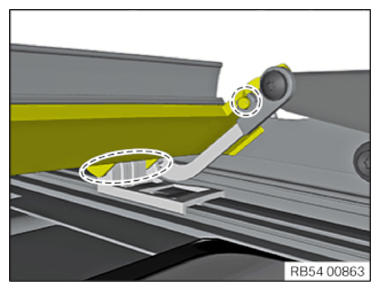

Clip connection of water channel.

Fig 2: Identifying Grease Applying Area On Clip Connection Of Water Channel
G09928312Courtesy of BMW OF NORTH AMERICA, INC.

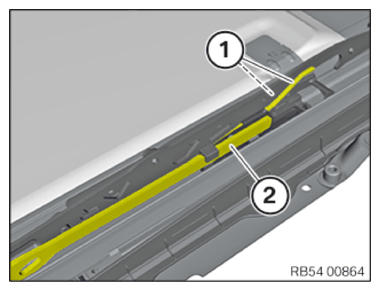

Rail (1) interior and exterior.

Rail (2).

Fig 3: Identifying Grease Applying Area On Interior And Exterior Rail
G09928313Courtesy of BMW OF NORTH AMERICA, INC.

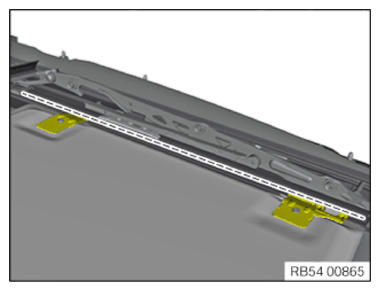

Across the entire length of the guide rail of the sliding roofliner.

Fig 4: Identifying Grease Applying Area On Entire Length Of Guide Rail Of Sliding Roofliner
G09928314Courtesy of BMW OF NORTH AMERICA, INC.

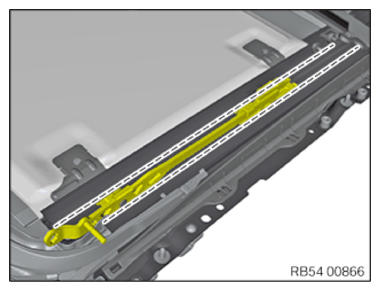

Across the entire length of the guide rail of the sliding roof mechanism.

Fig 5: Identifying Grease Applying Area On Entire Length Of Guide Rail Of Sliding Roof Mechanism
G09928315Courtesy of BMW OF NORTH AMERICA, INC.

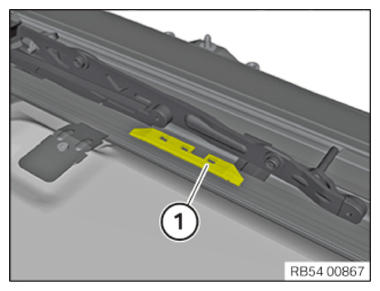

Limit position (1).

Fig 6: Identifying Grease Applying Area On Slide/Tilt Sunroof
G09928316Courtesy of BMW OF NORTH AMERICA, INC.
