Ideal setting

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Distance:
- Distance (A) between lid and roof at front and rear must be the same.
- Insert special tool 00 9 341 between gasket and cover.

This check (sliding in and pulling out the special tool) must be subject to tightness

Height:
- Front - flush to 1 mm deeper
- Rear - flush to 1 mm higher

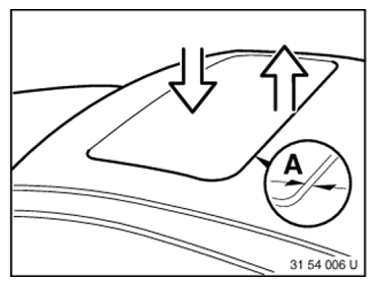

Fig 1: Identifying Distance Between Lid And Roof At Front And Rear

Courtesy of BMW OF NORTH AMERICA, INC.
