Height adjustment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Adjust height of glass slide/tilt sunroof cover (1) to roof (2) using special tool 00 9 315 (gap dimension wedge).

Press glass slide/tilt sunroof cover at front and rear up or down until ideal position is reached.

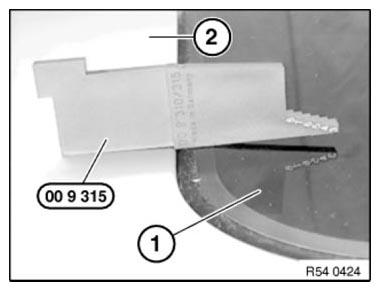

Fig 1: Adjusting Height Of Glass Slide To Roof Using Special Tool 00
G06886031Courtesy of BMW OF NORTH AMERICA, INC.
