Necessary preliminary work

• Remove ACOUSTIC COVER
• REMOVE BOTH INTAKE SILENCER HOUSINGS .
• Remove EXHAUST SYSTEM  .
• Remove both control sensors. See REPLACING LEFT CONTROL SENSOR (N63) and REPLACING RIGHT CONTROL SENSOR (N63) .
• Remove both monitoring sensors. See REPLACING LEFT MONITOR SENSOR (N63) and REPLACING RIGHT MONITOR SENSOR (N63) .

Picture shows the left side, carry out the operation for the right side in an identical way.

Release screws (1).

Remove cable clips on left and right.

Fig 1: Identifying Screws And Cable Clips On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber mounts (1) and release screws underneath.

Tightening torque 13 71 5AZ .

Remove cable clip (2).

Remove the HEAT SHIELD (3) at top.

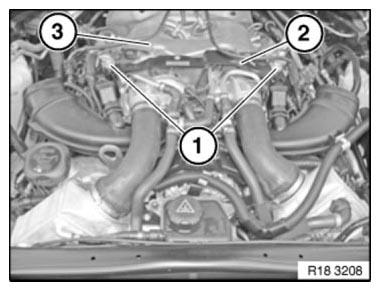

Fig 2: Identifying Rubber Mounts, Cable Clip And Heat Shield At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (1) at rear left and right.

This is described further below in the instructions.

Release screw (2) on catalytic converter.

Tightening torque 18 32 4AZ .

Release clamp (3) on catalytic converter.

Replace clamp (3).

Tightening torque 18 32 1AZ .

Installation note:

The clamp (3) must be installed with the screw toward the inside (illustration). Otherwise, the heat shield can no longer be installed on top.

Fig 3: Identifying Heat Shield At Rear Left And Right, Clamp With Screw On Catalytic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The ends of the V-band clamps must rest parallel to each other.

Tightening torque 18 32 1AZ .

Fig 4: Identifying V-Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

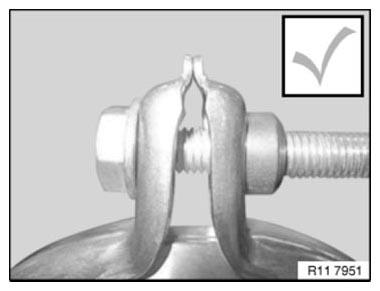

If you can see a gap between the ends of the V - band clamps, release and then repeat the screw connection.

Tightening torque 18 32 1AZ .

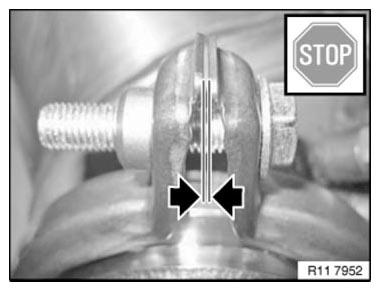

Fig 5: Locating V - Band Clamps Gap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If the ends of the V-band clamps are positioned under each other, release and then repeat the screw connection.

Tightening torque 18 32 1AZ .

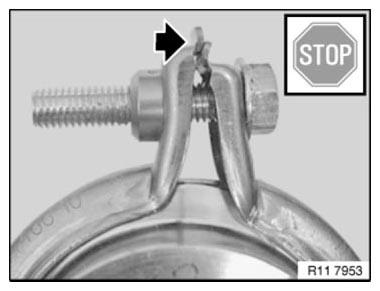

Fig 6: Locating V - Band Clamps Position

Courtesy of BMW OF NORTH AMERICA, INC.

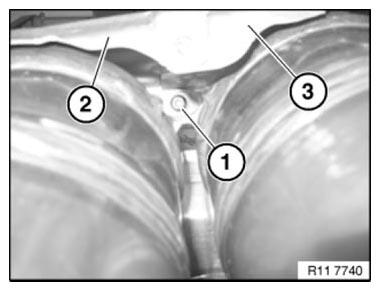

Release screw (1) from heat shields (2) and (3).

Screw (1) is located between the catalytic converters.

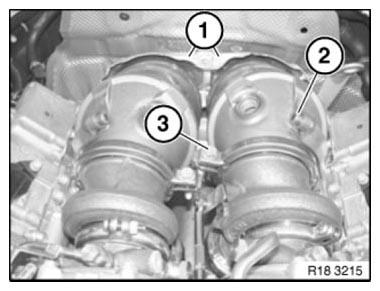

Fig 7: Identifying Screws On Heat Shields And Catalytic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

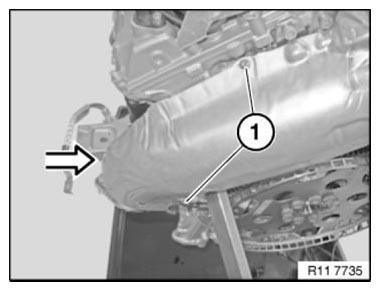

Release screws (1) on left heat shield.

Unclip left heat shield and remove.

Fig 8: Removing Screws Of Left Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

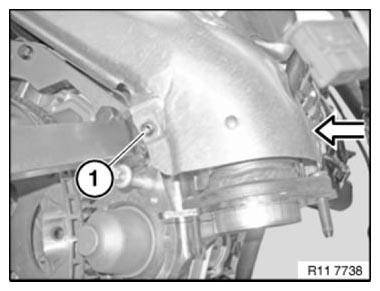

Release screw (1) on right heat shield.

Fig 9: Identifying Screw Of Right Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

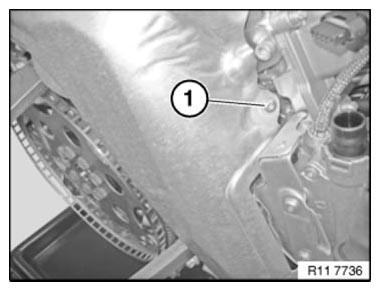

Release screw (1) on heat shield at bottom right.

Unclip heat shield and remove.

Fig 10: Identifying Screw Of Heat Shield At Bottom Right

Courtesy of BMW OF NORTH AMERICA, INC.

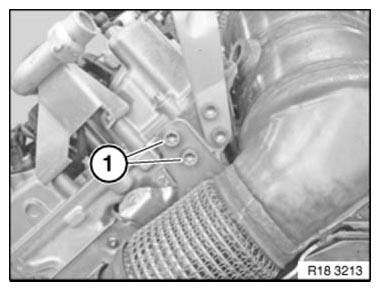

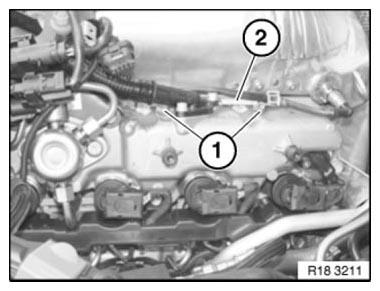

Release screws (1).

Detach hose (2) from cylinder head cover.

Release screws (3) on holder.

Tightening torque 18 32 2AZ .

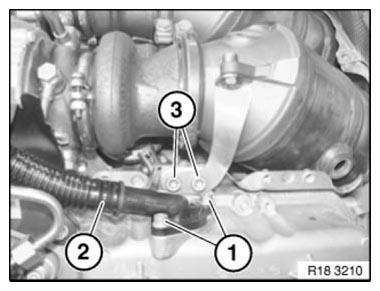

Fig 11: Identifying Hose Of Cylinder Head Cover And Screws On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on catalytic converter, cylinders 5 - 8, rear, at cylinder head.

Tightening torque 18 32 3AZ .

Remove catalytic converter for cylinders 5-8.

Fig 12: Identifying Screws On Catalytic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Picture shows the engine removed.

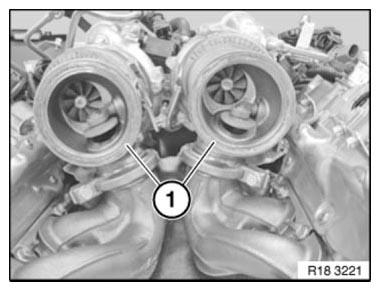

Replace gasket (1) on left exhaust turbocharger.

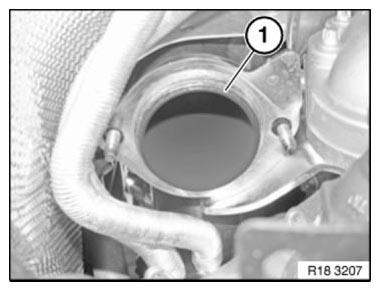

Fig 13: Identifying Gasket On Left Exhaust Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean sealing surfaces.

Replace gasket (1).

Fig 14: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leak tightness.
