1812050 Replacing center muffler (N63): Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

Support center silencer with special tool 31 2 220 and a suitable universal lifter.

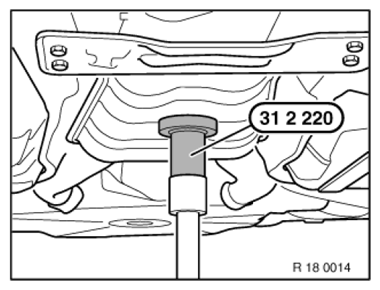

Fig 1: Identifying Centre Silencer With Special Tool 31 2 220

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 20 6AZ .

Only when independent heating is fitted: release screw (2) on metering pump.

Tightening torque 18 20 7AZ .

Release screws (3) on underbody panels.

Remove reinforcement plate (4).

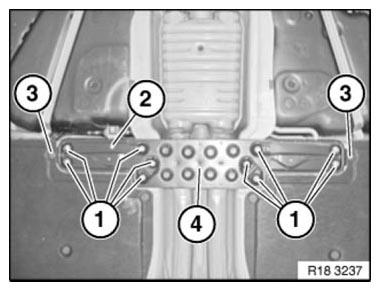

Fig 2: Identifying Screw On Metering Pump, Screws On Underbody Panels And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the cutting line is not marked by a punch mark in the pipe, determine the cutting line by means of the pipe length on the new center muffler.
Carry over cutting line to faulty center muffler and mark.
Secure center muffler against falling off.
Cut through exhaust pipes at marked point with a suitable tool.

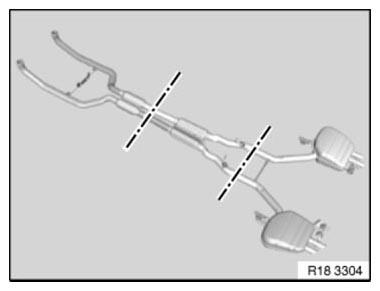

Fig 3: Identifying Cutting Line On Centre Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 4AZ .

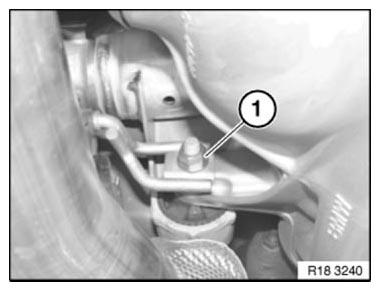

Fig 4: Identifying Exhaust System Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust center muffler to fit and connect with clamps.

Centre clamp and tighten down.

Tightening torque 18 31 4AZ .

The procedure is identical on both sides.

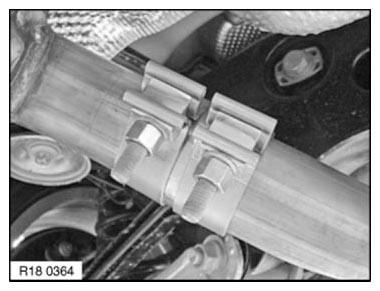

Fig 5: Identifying Centre Muffler With Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check exhaust system for leaks.
