1812031 Replacing left or right rear silencer (N63): Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard!
Only perform these tasks after exhaust system has cooled down.
Only perform these tasks after exhaust system has cooled down.

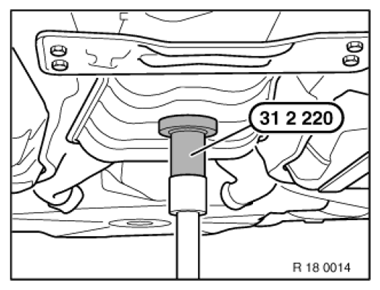

Support rear silencer with special tool 31 2 220 and a suitable universal lifter.
NOTE:

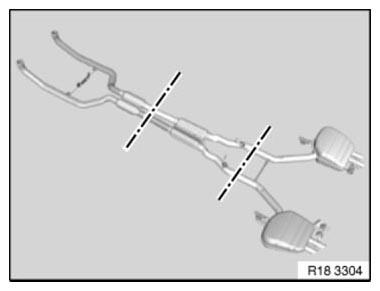

If the cutting line is not marked by a punch mark in the pipe, determine the cutting line by means of the pipe length on the new rear muffler.
Carry over cutting line to faulty rear muffler and mark.
Secure rear silencer against falling off.
Cut through exhaust pipes at marked point with a suitable tool.
Carry over cutting line to faulty rear muffler and mark.
Secure rear silencer against falling off.
Cut through exhaust pipes at marked point with a suitable tool.

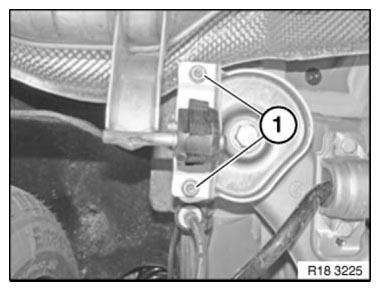

Picture shows the left side, the procedure for the right side is identical.
Slacken nut (1).
Tightening torque 18 20 5AZ .

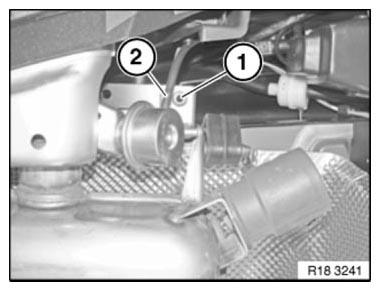

Picture shows the left side, the procedure for the right side is identical.
Slacken nut (1).
Tightening torque 18 20 5AZ .
Detach hose (2) on vacuum unit.
Lower and remove rear muffler with assistance of a second person.
Installation:

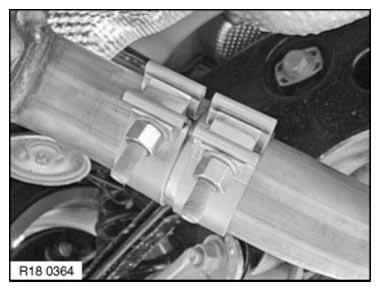

Install, fit new rear silencer and connect with hose clamp.
Centre clamp and tighten down.
Tightening torque 18 31 4AZ .
The procedure is identical on both sides.
NOTE:
Check rubber mount for damage.
Replace damaged rubber mount.
Check exhaust system for leaks.
Replace damaged rubber mount.
Check exhaust system for leaks.
