Necessary preliminary work
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
- Secure engine in INSTALLATION POSITION .
- Remove rear UNDERBODY PROTECTION .
- Release ENGINE SUPPORT ARM (left-hand drive models only)
- Lower FRONT AXLE SUPPORT (right-hand drive models only)

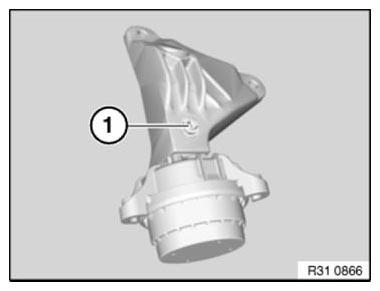

Release bolt (1) and remove engine mount.
IMPORTANT:
Installation note:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ .
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ .
Installation note:

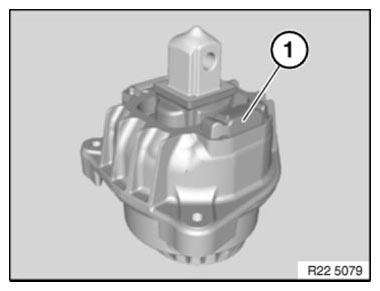

Rubber part (1) of engine mount must point to center of vehicle.
