12 63 500 Replacing temperature sensor for electronics box (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Release screws.

Tightening torque, 12 90 4AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove cover (1) from electronics box.

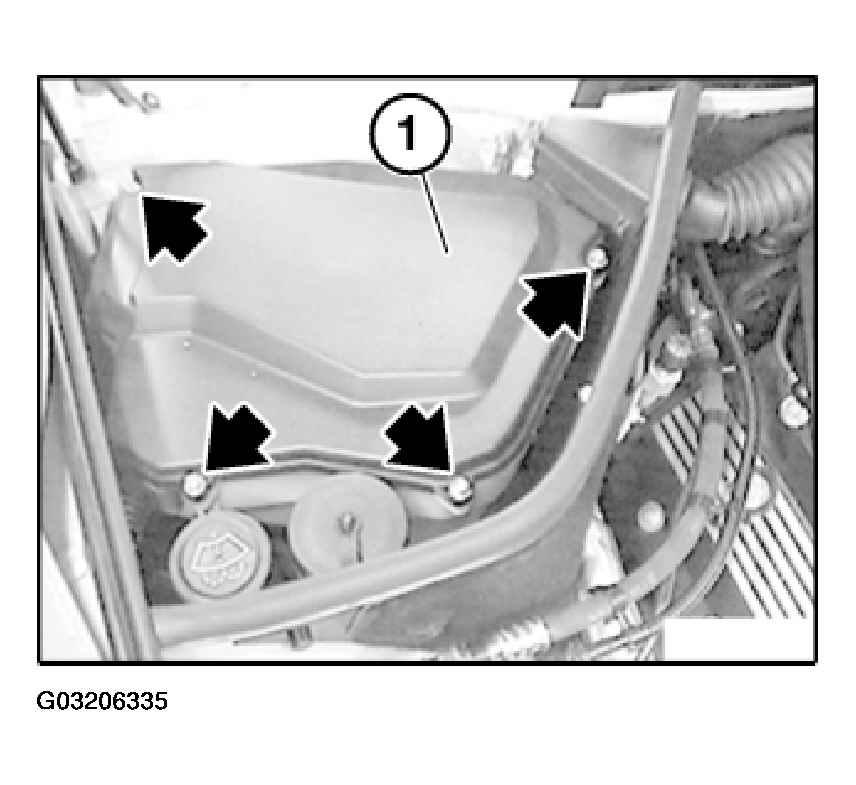

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from temperature sensor.

Remove temperature sensor for electronics box.

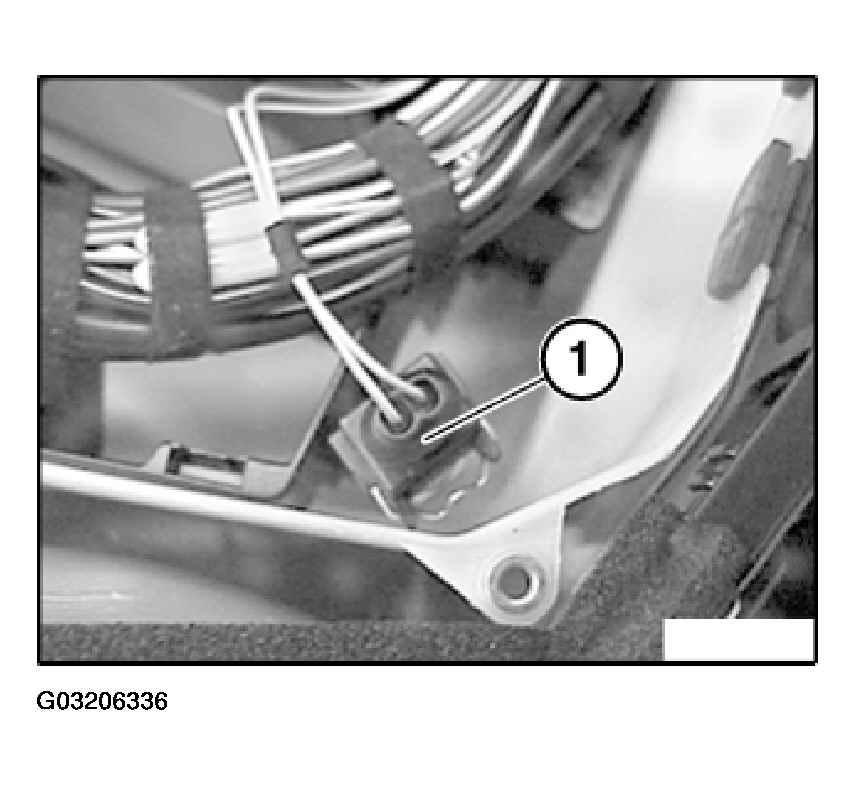

Fig 2: Removing Temperature Sensor For Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.
