12 41 020 Removing and installing/replacing starter (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... Instructions for disconnecting and connecting battery .

Remove battery negative lead from battery and cover.

Remove engine underguard at front and rear.

Release nut.

Installation:

Tightening torque, 12 41 4AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Disconnect battery positive lead from starter motor.

Unfasten plug connection (2) and disconnect.

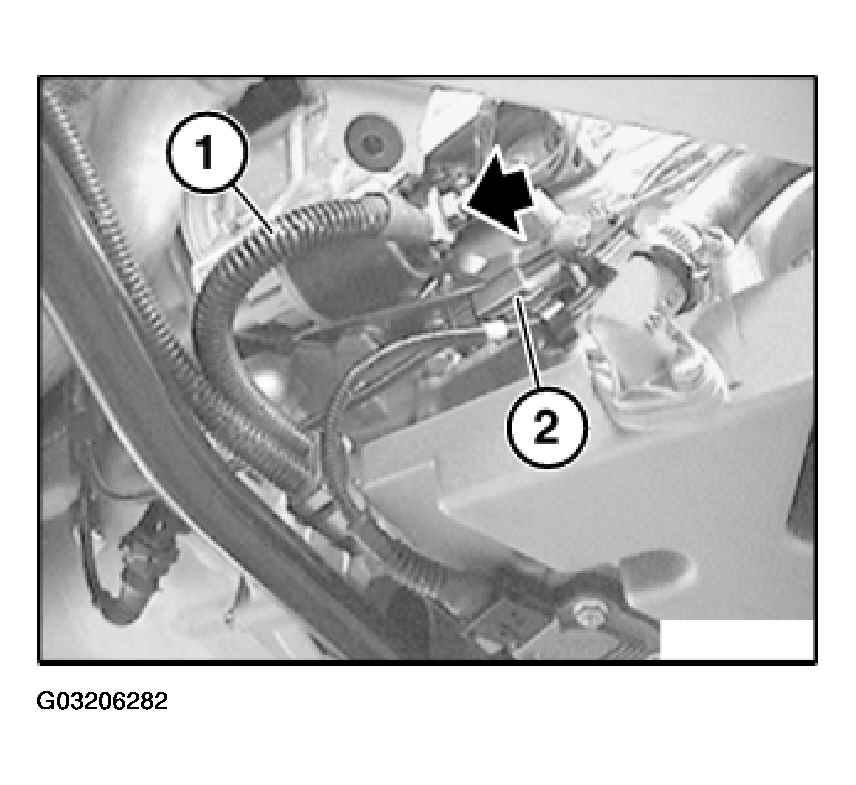

Fig 1: Disconnecting Battery Positive Lead From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

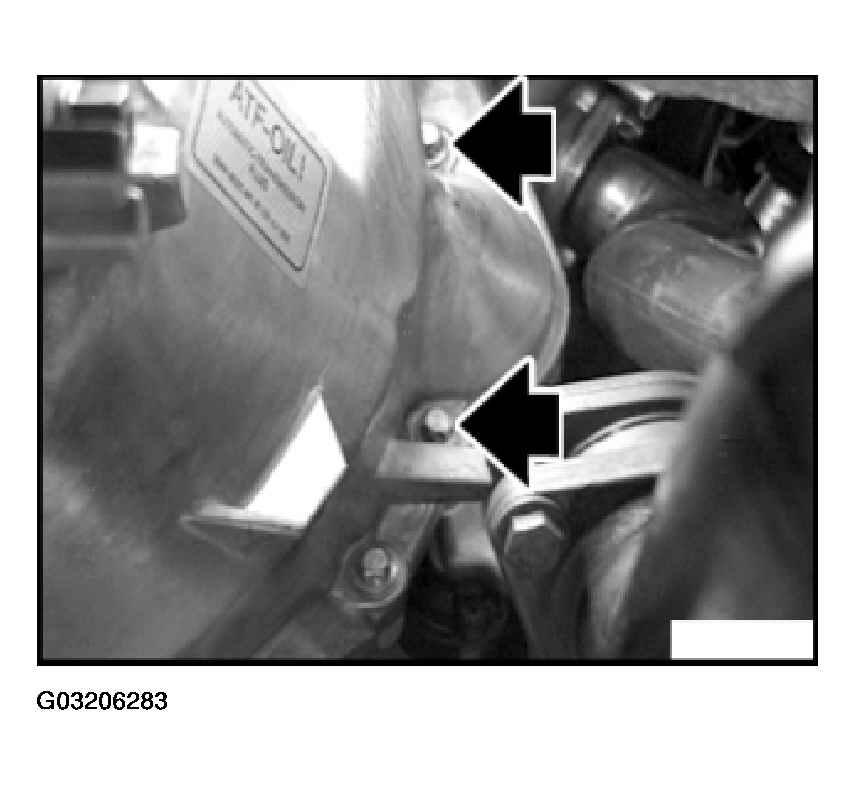

Fig 2: Releasing Screws From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 12 41 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Withdraw starter motor from transmission mounting.

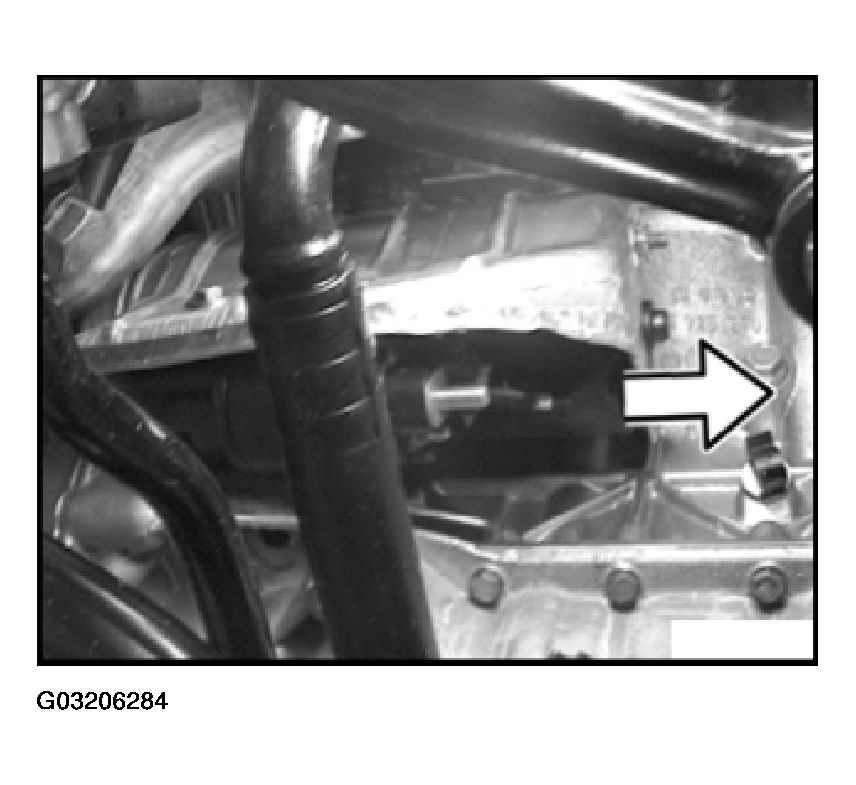

Fig 3: Withdrawing Starter Motor From Transmission Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Remove starter motor.

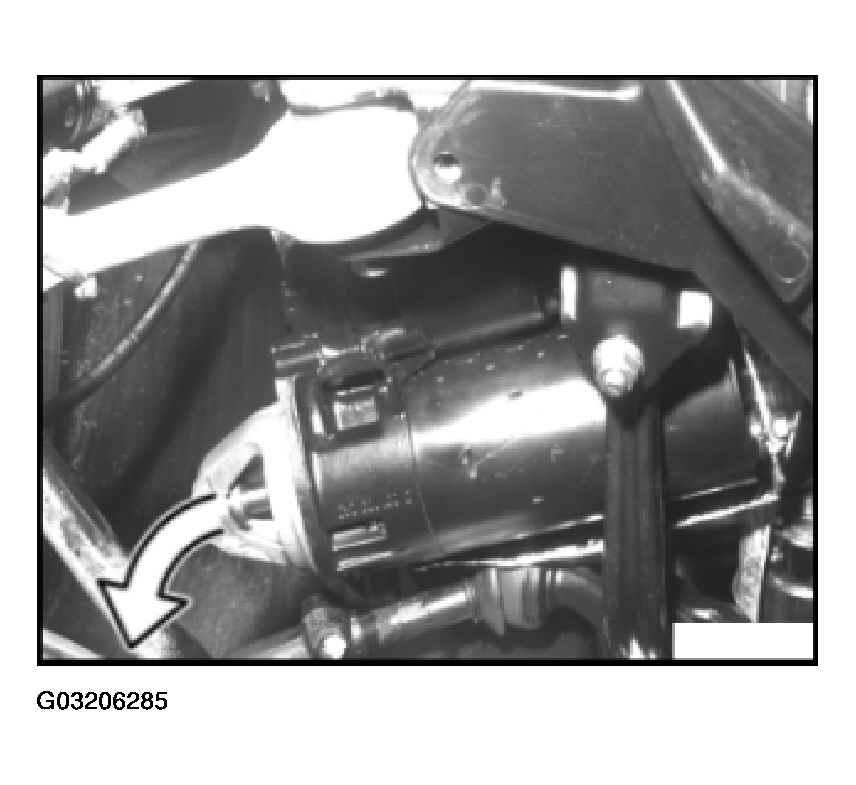

Fig 4: Removing Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check starter pinion for damage.

Check starter ring gear for damage.
