12 61 285 Replacing level switch for engine oil
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition.
- Unfasten oil filter cover to enable engine oil in filter to flow back into the oil pan.
- Remove underbody panelling.
- If necessary, remove reinforcing plate.
- Drain engine oil.

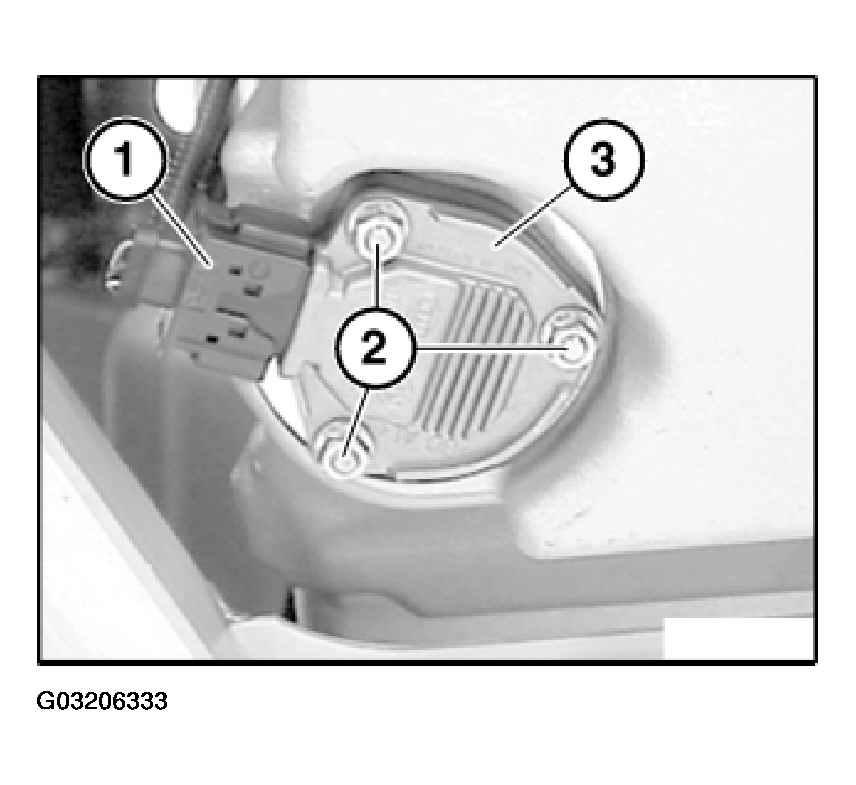

Disconnect plug connection (1).
Unscrew nuts (2).
Remove level switch (3).
Installation:
Clean sealing face on oil sump.
Replace seal on level switch.
Installation:
Top up engine oil.
Screw on oil-filter cover tightly.
Tightening torque, 1142 2AZ. Refer to ENGINE - TIGHTENING TORQUES .
