12 63 520 Replacing main relay (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Release screws.

Tightening torque, 12 90 4AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove cover (1) from electronics box.

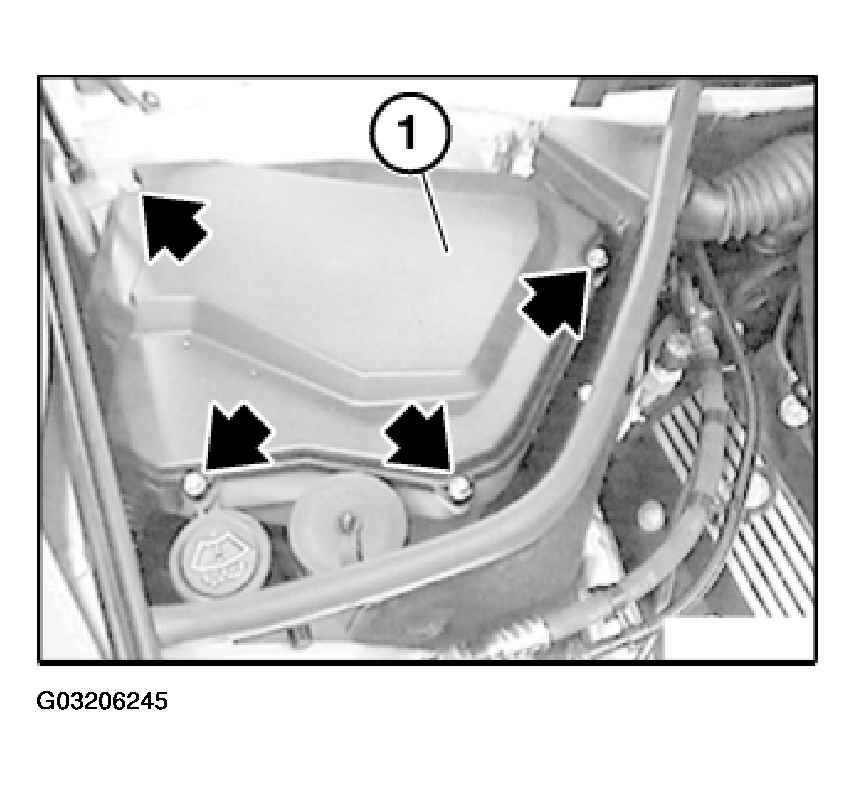

Fig 1: Removing Cover From Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

Main relay of Digital Motor Electronics
Engine fuses for Digital Motor Electronics

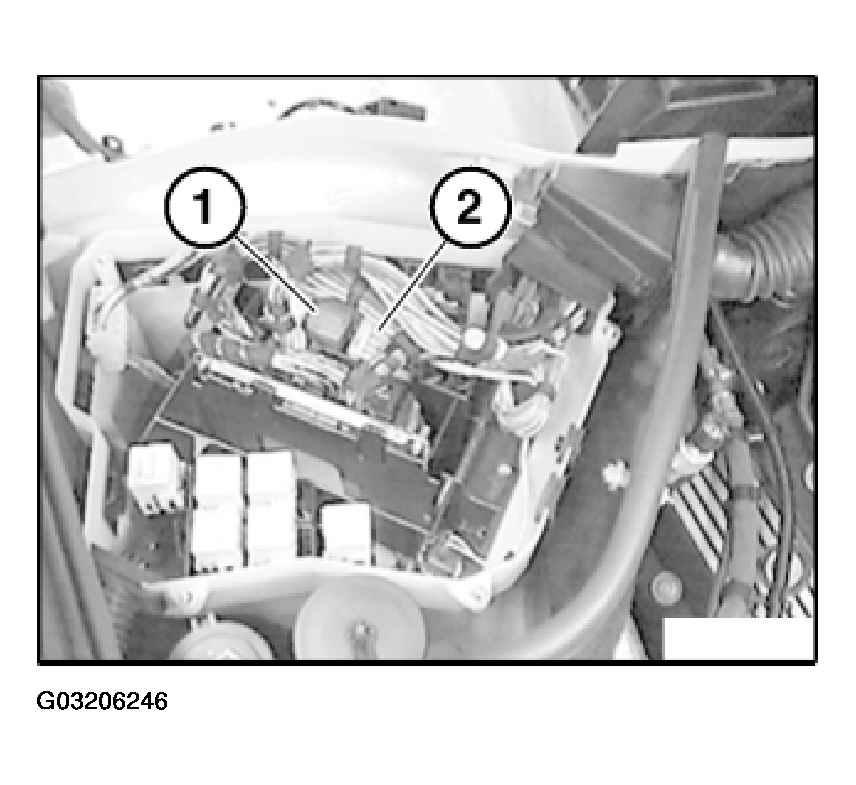

Fig 2: Locating Main Relay & Fuses Of Digital Motor Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Notes on troubleshooting:

If the starter turns during the engine starting sequence but the engine fails to start:

Check engine fuses
If fuses are blown, replace them completely with fuse holder
Find out why fuses have blown

Continue troubleshooting as per DIS instructions.
