12 31 020 Removing and installing/replacing alternator (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... Instructions for disconnecting and connecting battery .

Remove battery negative lead from battery and cover.

Remove alternator drive belt. Refer to 12 31 ... Replacing alternator belt pulley .

Remove cap from deflection roller.

Release screw (1) and remove deflection roller.

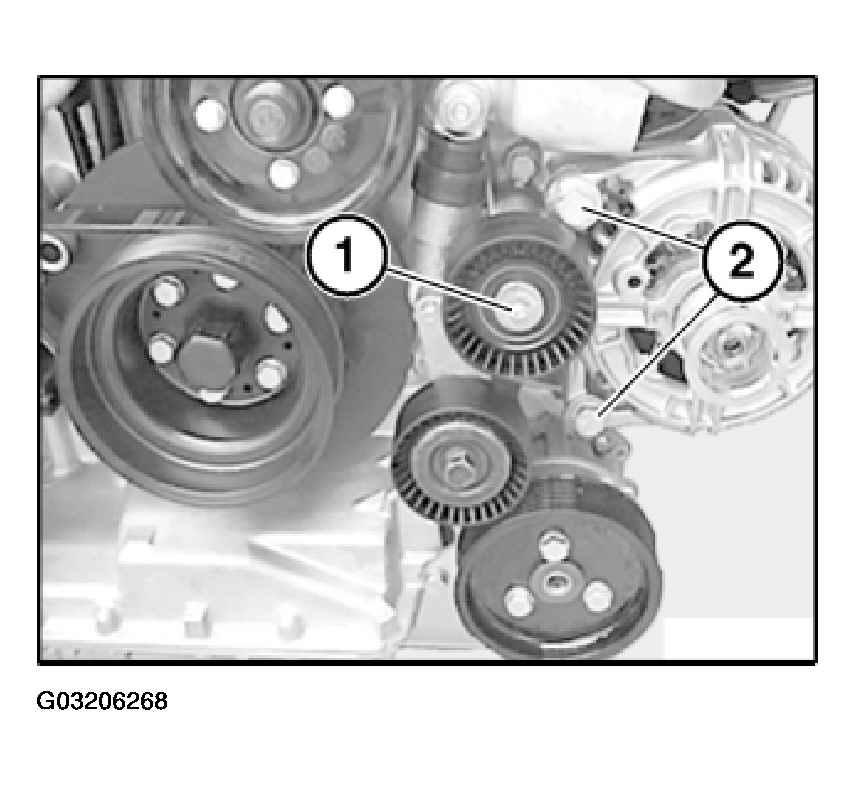

Fig 1: Removing Deflection Roller

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on alternator.

CAUTION: The belt pulley of the power steering pump must not be damaged when the alternator is removed.

Release screws (1).

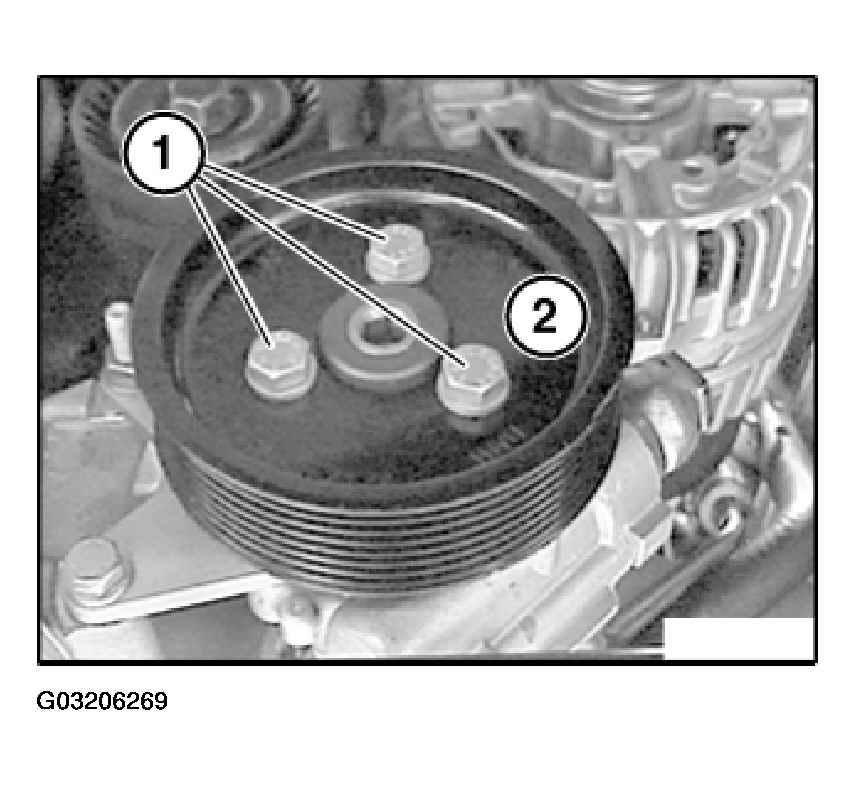

Fig 2: Removing Belt Pulley For Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Remove belt pulley (2) for power steering pump.

Disconnect plug connection (2) on alternator.

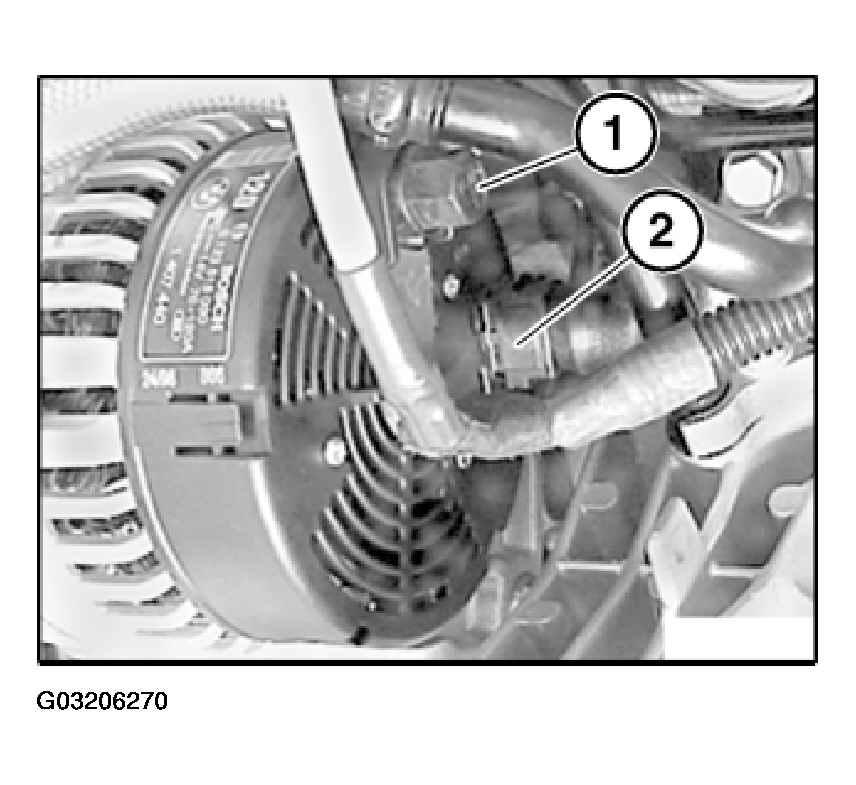

Fig 3: Disconnecting Plug Connection On Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1).

Installation:

Tightening torque, 12 31 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove battery positive lead from alternator.

Remove alternator.

Installation:

Press out bushes on engine support.

Position of bushes after removal
Assembly position

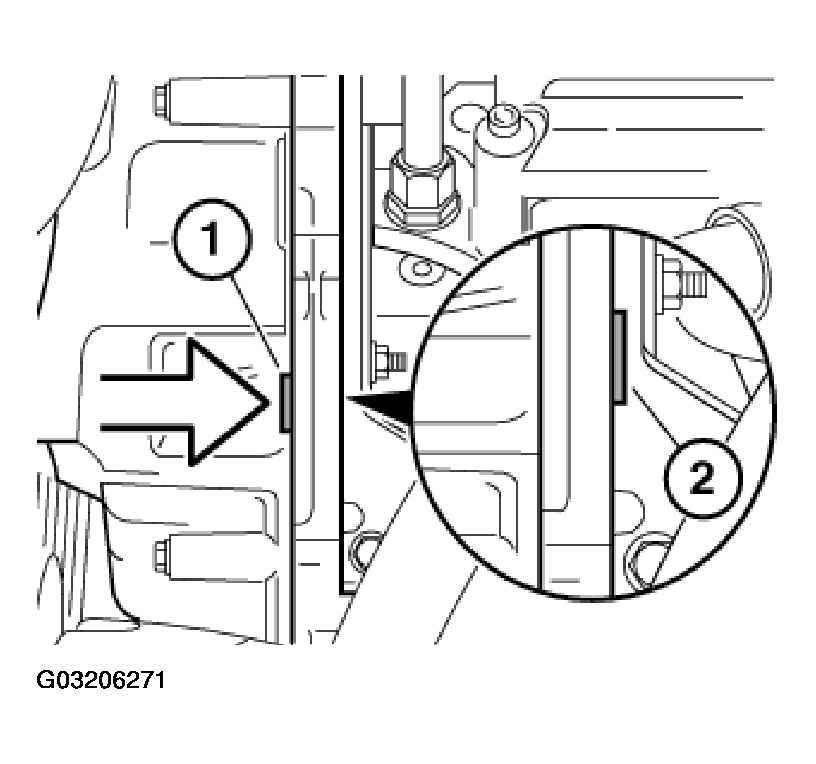

Fig 4: Identifying Position Of Bushes

Courtesy of BMW OF NORTH AMERICA, INC.
