31 12 134 Replacing rubber mount in left or right trailing link

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rubber mount may only be replaced once!

Necessary preliminary tasks:

Check ball joints of tension links while installed, replace TRAILING LINK if necessary
Remove TRAILING LINK

IMPORTANT: If the trailing link already features an identification mark with a center punch, it is necessary to replace the trailing link.

Mark trailing link with a punch mark in area (A).

Fig 1: Identifying Punch Mark On Tension Strut

Courtesy of BMW OF NORTH AMERICA, INC.

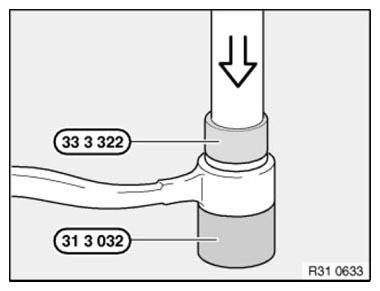

Using a press and special tools 33 3 322 and 31 3 032, press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

Fig 2: Pressing Rubber Mount Out Of Tension Strut Using Press And Special Tools (33 3 322, 31 3 032)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bushing in tension strut clean and free from grease.

Align rubber mount using notch to marking on tension strut and press in.

Fig 3: Locating Rubber Mount Alignment Position

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

Fig 4: Identifying Profusion
Courtesy of BMW OF NORTH AMERICA, INC.
