31 12 075 Checking both tension struts

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove all acoustic insulation from engine compartment.

Remove cap from traction strut bearing.

Installation note:

Insert cap in clip.

Fig 1: Removing Cap From Tension Strut Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Note the markings on the tension strut.

1 = Date stamp

2 = Side designation L = left; R = right

Different tension struts may be fitted.

A: Tension strut with date stamp (1)

B: Tension strut without date stamp

Fig 2: Removing Cap From Tension Strut Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 31 1 401.

A: Tension strut with date stamp

Remove spacer 31 1 402 from special tool 31 1 401.

B: Tension strut without date stamp

Attach spacer 31 1 402 to special tool 31 1 401.

Fig 3: Removing Cap From Tension Strut Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Spacer 31 1 402 must be attached to tension struts which do not have date stamps.

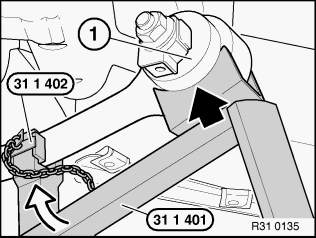

Position special tool 31 1 401 on traction strut bearing (1) and swing upward until it contacts tension strut.

CAUTION: Bring special tool into contact with tension strut without exerting force or pressure.

Fig 4: Removing Cap From Tension Strut Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

If the control point (1) of the special tool contacts the tension strut, the tension strut is O.K.

Check left tension strut with tool end L.

Check right tension strut with tool end R.

Replace defective tension strut

NOTE: Removed tension struts with traction strut bearings can also be checked with special tool 31 1 401/402.

Fig 5: Removing Cap From Tension Strut Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
