Adjusting normal position

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Installation note:

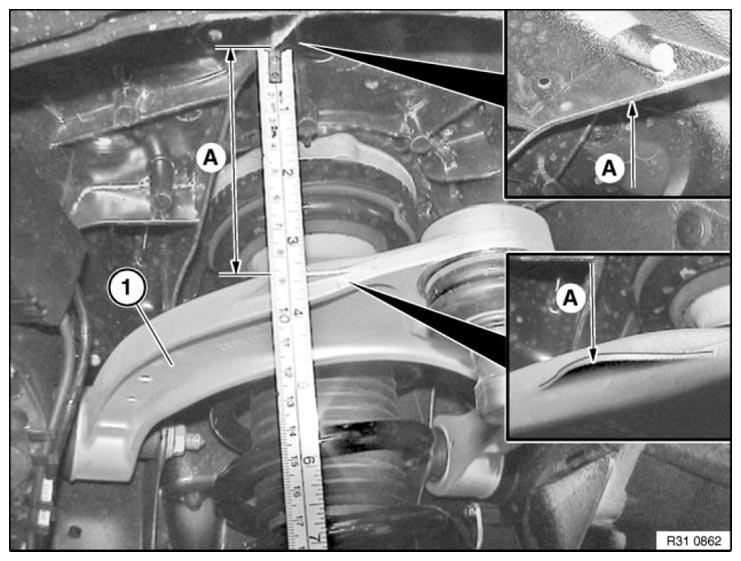

The graphic shows the left control arm.

The protrusion is missing on the right side. Measure to the middle of the control arm.

Secure control arm (1) to body vertically to dimension (A) = 90 mm.

Fig 1: Adjusting Normal Position
G06889576Courtesy of BMW OF NORTH AMERICA, INC.
