37 11 030 Removing and installing front left or right spring strut

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FRONT WHEEL
Remove upper control arm from swivel bearing. See REMOVING TOP LEFT CONTROL ARM or REMOVING TOP RIGHT CONTROL ARM .
Remove ANTI-ROLL BAR LINK FROM SPRING STRUT

IMPORTANT:

Risk of damage!

Secure spring strut against falling out.

Release screws (1).

Fig 1: Identifying Screws

G06889589

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn support bearing in direction of travel up to stop in clockwise direction and tighten.

Clean contact surface in spring strut dome.

Tightening torque 31 31 1AZ .

Fig 2: Turning Support Bearing

G06889590

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disconnect feed line (2) from mounting.

Fig 3: Identifying Plug Connection And Feed Line

G06889591

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Release spring strut from control arm (2).

Installation note:

Replace self-locking nut.

Note direction of insertion of screw.

Adhere to the assembly sequence.

Tightening torque 31 12 7AZ .

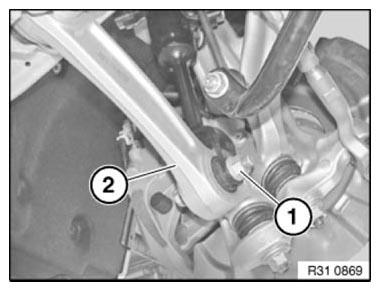

Fig 4: Identifying Control Arm With Nut

G06889592

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

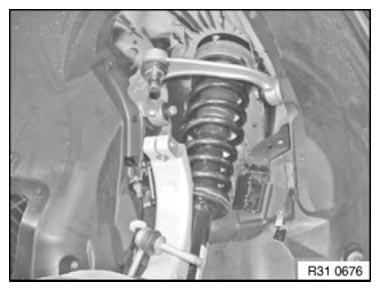

Fig 5: Identifying Spring Strut

G06889593

Courtesy of BMW OF NORTH AMERICA, INC.
