51 24 130 Removing and installing/replacing striker for rear lid lock: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out cap (1).

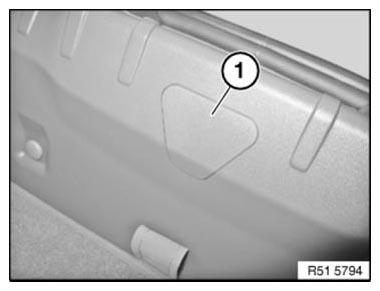

Fig 1: Identifying Rear Lid Lock Cap
G06885678Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 24 03AZ .

Remove striker for rear lid lock (1).
