51 16 480 Removing and installing or replacing front grab handle

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Fold open trim in downward direction.

Release screws underneath.

Tightening torque 51 16 03AZ .

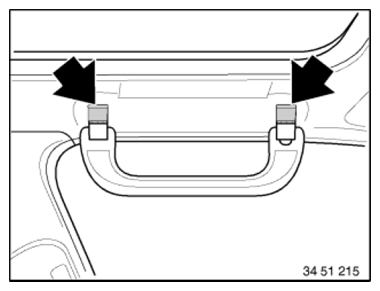

Fig 1: Locating Front Grab Handle Screws
G06885356Courtesy of BMW OF NORTH AMERICA, INC.
