51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Version with night vision:

Fold cover (1) in seal mounting upwards as pictured.

Release camera fixing screw (2) and remove.

Fig 1: Identifying Cover And Camera Fixing Screw

G06885363

Courtesy of BMW OF NORTH AMERICA, INC.

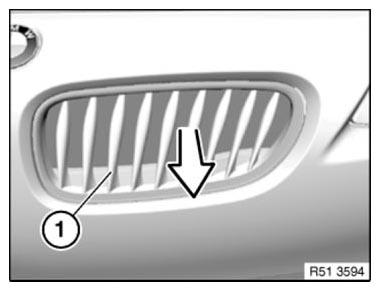

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

Fig 2: Removing Front Radiator Grille

G06885364

Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision:

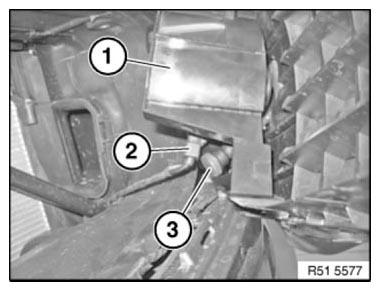

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1).

Fig 3: Identifying Plug Connection, High-Pressure Nozzle Line And Night Vision Camera

G06885365

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catches and guides on middle front grille must not be damaged.

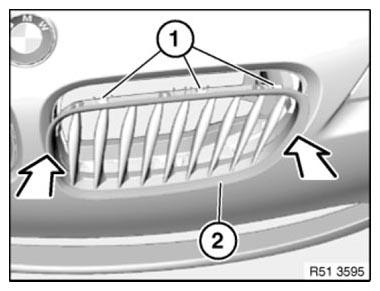

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 4: Pushing Front Radiator Grille Into Bumper Trim

G06885366

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, install NIGHT VISION CAMERA .
