51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove DOOR SILL COVER STRIP, FRONT (INSIDE) right
- Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT .

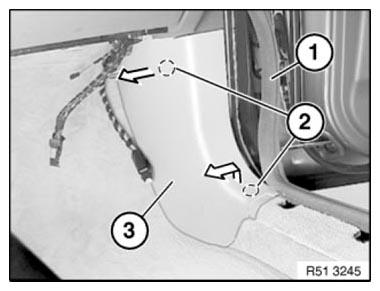

Detach edge protection (1) in area of side trim (3).
Release clips (2) in direction of arrow.
Pull out side trim panel (3) from carpet.

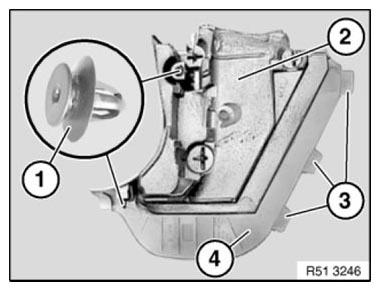

Installation note:
Following parts of side trim panel (4) must not be damaged or missing:
- Clips
- Insulating mat
- Tabs (for inserting in carpet)
