51 44 180 Removing and installing/replacing make-up mirror in rear cabin

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Carefully lever out make-up mirror (1) with special tool 00 9 317 in direction of arrow.

Disconnect plug connection behind and remove make-up mirror (1).

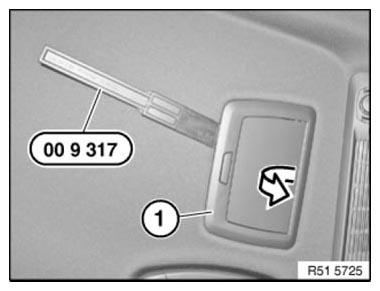

Fig 1: Removing Make-Up Mirror With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure guides (1) and catches (2) are correctly seated.

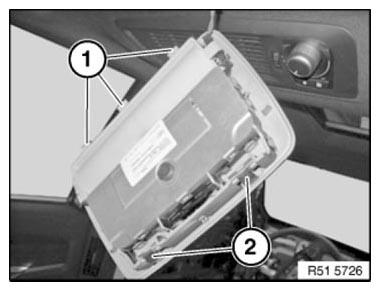

Fig 2: Identifying Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
