51 22 001 Replacing door detent (lock striker), rear left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove lock striker.

Tightening torque 51 22 2AZ .

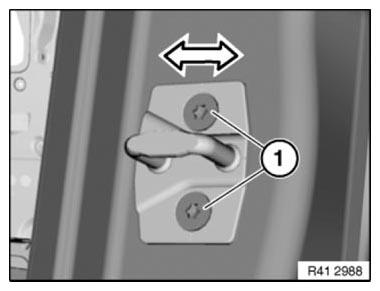

Fig 1: Identifying Lock Striker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks

Adjust lock striker

This operation is described in: ADJUST DOORS .
