51 12 828 Removing and installing/replacing guide for rear left or right bumper

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Unfasten screws (1 and 3).

Replace sheet nuts behind if necessary.

Unscrew nuts (2).

Remove guide (4).

Tightening torque 51 12 3AZ .

If necessary, remove TELEPHONE AERIAL .

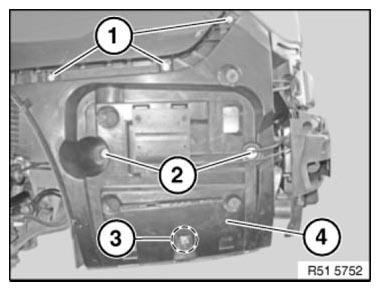

Fig 1: Identifying Guide, Nuts And Screws Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
