51 12 825 Removing and installing/replacing guide for rear center bumper: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
If necessary, remove SENSOR FOR LANE CHANGE WARNING

NOTE: Operation is described on the left side.

The operation on the right side is the same as for the left side.

Release screw (1).

Slacken nut (2).

Tightening torque 51 12 2AZ .

Installation note:

Note line routing.

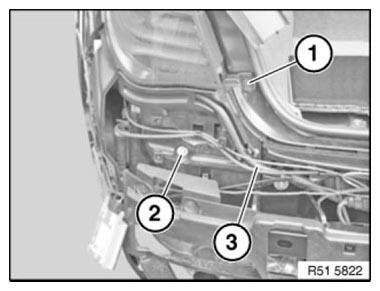

Fig 1: Identifying Screw And Nut Of Rear Center Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 51 12 2AZ .

If necessary, remove plug connection on bumper aerial for comfort access system.

Feed out guide (2) and remove.

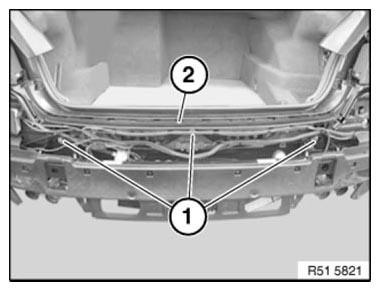

Fig 2: Identifying Guide And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
