51 12 050 Removing and installing/replacing support for rear bumper trim: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

Lever out expander rivet (1) on adapter (2) and cover (3).

NOTE: Cover can vary.

The towing hitch optional equipment is pictured.

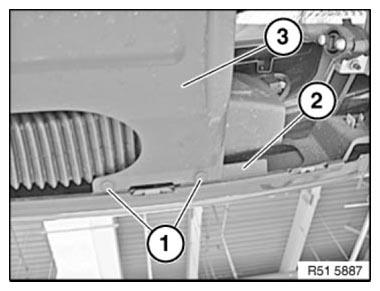

Fig 1: Identifying Rivet, Adapter And Cover

G06885349

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip adapter (1) on bumper trim carrier (2) at marked points.

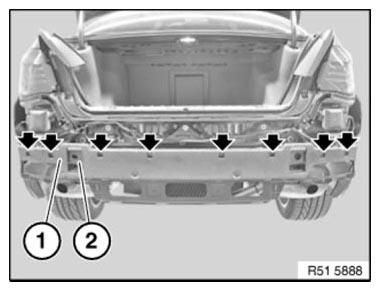

Fig 2: Identifying Adapter And Bumper Trim Carrier

G06885350

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operation is described on the left side. Right side identical.

Unscrew nuts (1).

Tightening torque 51 12 1AZ .

Slacken nut (2).

Remove carrier for rear bumper trim (3).

Fig 3: Identifying Rear Bumper Trim And Nuts

G06885351

Courtesy of BMW OF NORTH AMERICA, INC.
