51 46 028 Removing and installing/replacing rear air outlet trim

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear window shelf. See REMOVING TRIM PANEL FOR STORAGE SHELF or REMOVING TRIM PANEL FOR STORAGE SHELF (WITH ROLLER SUNBLIND) .

Release screws (1) and feed out air outlet trim (2) towards front.

Installation note:

Make sure air outlet trim (2) is correctly seated in associated guides.

Fig 1: Feeding Out Air Outlet Trim With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

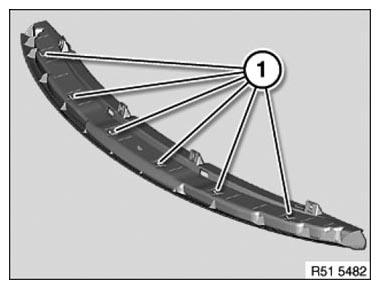

Installation note:

Guides (1) must not be damaged.

Fig 2: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.
