51 16 373 Removing and installing/replacing lock for glovebox cover on left or right (glovebox handle)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open glovebox cover

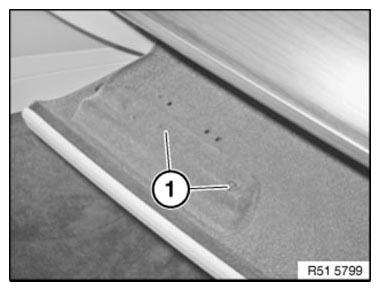

Release screws (1).

Fig 1: Identifying Glovebox Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

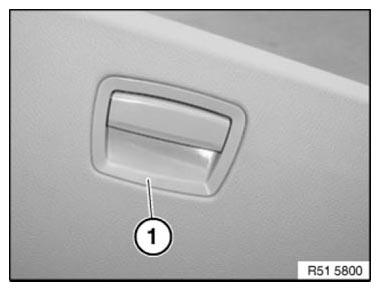

Remove handle lock (1).

Fig 2: Identifying Handle Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

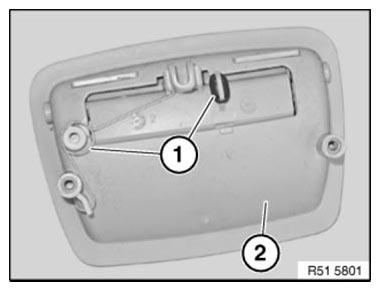

Make sure spring and rubber (1) of handle (2) are correctly seated.

Fig 3: Identifying Spring, Rubber And Handle

Courtesy of BMW OF NORTH AMERICA, INC.
