51 16 274 Removing and installing/replacing rear center console

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove mat insert (1).

Fig 1: Identifying Mat Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 16 12AZ .

Unfasten screws (2).

Tightening torque 51 16 12AZ .

Remove center console.

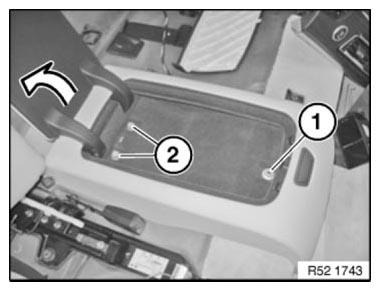

Fig 2: Removing Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
