51 16 273 Removing and installing/replacing fastener for center armrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER ARMREST

Unlock fastener for center armrest (1) and pull out in direction of arrow from center armrest (2).

Fig 1: Removing Fastener For Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Release elements (1) must not be damaged.

Ensure correct guiding (2).

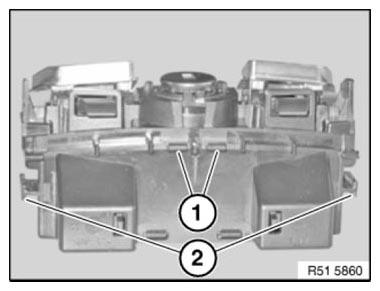

Fig 2: Identifying Guiding And Elements

Courtesy of BMW OF NORTH AMERICA, INC.
