51 16 227 Removing and installing/replacing trim on center console at side left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip front center armrest trim (1).

Release screws underneath.

Unclip center console trim (2) at points (3) and remove.

IMPORTANT: Do not disconnect plug connections behind.

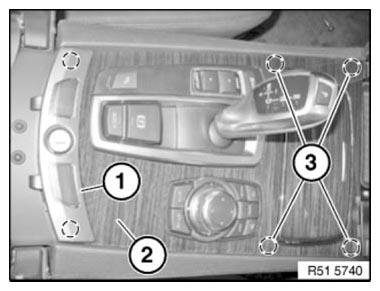

Fig 1: Identifying Front Center Armrest Trim And Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trims (1) on left/right in direction of arrow.

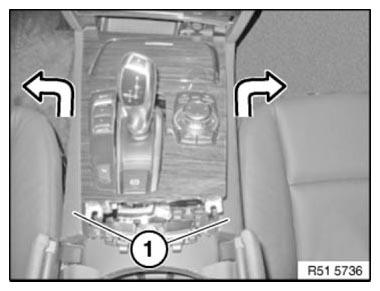

Fig 2: Removing Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to correct guides (1) on trim (2).

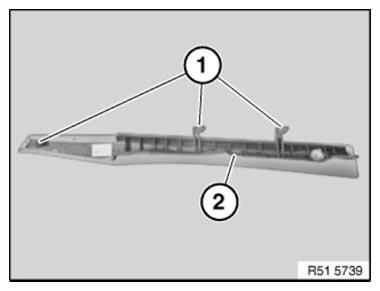

Fig 3: Identifying Guides And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
