51 16 190 Removing and installing/replacing lock cylinder in center armrest
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

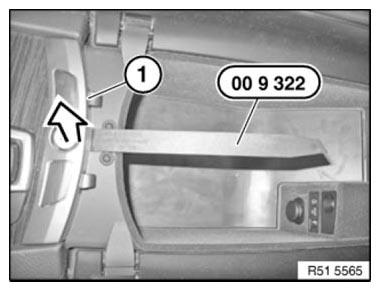

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.

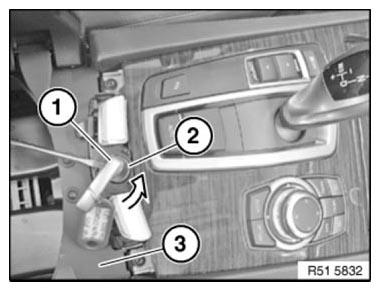

Turn ignition key (1) in direction of arrow to left.
Carefully press lock cylinder (2) upwards with a suitable tool and remove from center armrest (3).
Installation note:
Make sure lock cylinder (2) is correctly seated.
