51 16 063 Removing and installing/replacing interior rear-view mirror (with Japanese toll mirror)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 °C.

If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror foot and rear-view mirror (e.g. car left to stand indoors or in the shade for at least 30 minutes).

IMPORTANT: To avoid breaking windscreen:

Screw rear-view mirror off mirror mount.

Mirror must not be pulled or pressed off towards front or rear.

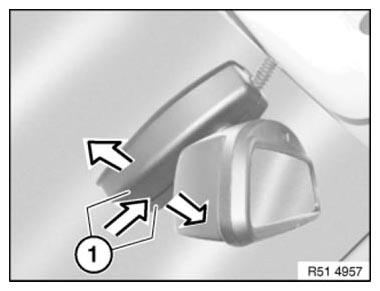

Press on end caps (1) and at same time pull them apart; this releases clip connection of both caps (1).

Fig 1: Pressing Caps
G06885420Courtesy of BMW OF NORTH AMERICA, INC.

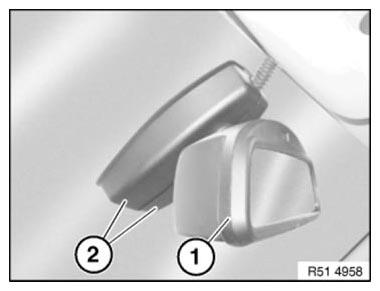

Turn mirror (1) to right and left and feed out end caps (2).

Fig 2: Identifying Mirror And Caps
G06885421Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

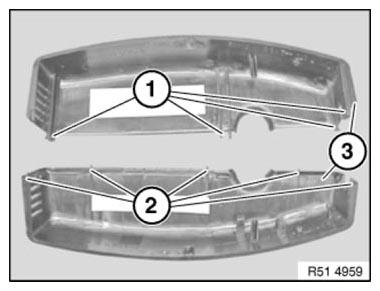

Catches (1) and guides (2) of end caps (3) must not be damaged, replace if necessary.

Fig 3: Identifying Catches, Guides And End Caps
G06885422Courtesy of BMW OF NORTH AMERICA, INC.

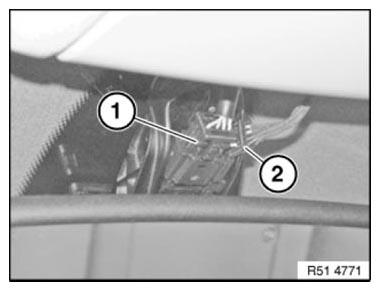

Unlock and detach plug connections (1 and 2).

NOTE: Pay attention to cable guide for rain sensor.
Fig 4: Identifying Plug Connections
G06885423Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not pull or press rear-view mirror off towards front or rear.

Because of altered mirror foot, rear-view mirror must be twisted off.

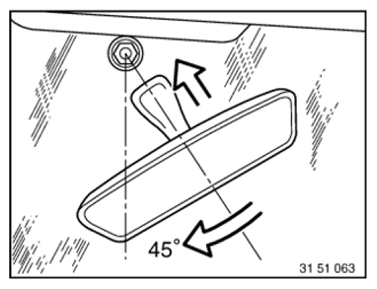

Twist mirror foot approx. 45° to right until mirror foot is released from mirror mount.

Fig 5: Twisting Mirror Foot
G06885424Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

  1. Twist mirror foot by approx. 45° and fit to mirror mount.
  2. Turn mirror foot until it engages on mirror base plate.
Fig 6: Turning Mirror Foot
G06885425Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
