51 16 026 Replacing mirror glass
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.
IMPORTANT:
Risk of damage!
Bring exterior mirror to room temperature to prevent catches from breaking off.
IMPORTANT:
Risk of damage!
Secure mirror glass (1) against falling out.

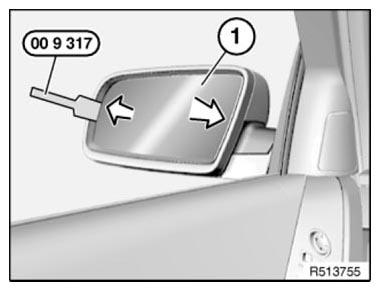

Press mirror glass (1) on side vehicle by hand to full extent.
Unclip mirror glass (1) all around from outer side with special tool 00 9 317 .
Unlock and disconnect associated plug connections, remove mirror glass (1).
Installation note:

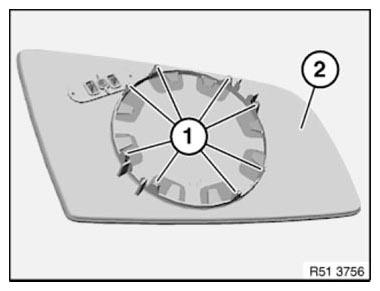

Retaining lugs (1) must not be damaged.
Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.
Ensure correct locking.
Make sure mirror adjusting drive functions correctly.
