51 45 470 Removing and installing/replacing driver's side hinged compartment panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT
Remove HINGED COMPARTMENT ON DRIVER'S SIDE

Release screws (1).

Remove hinged compartment panel (2) and unlock and disconnect plug connection behind.

Installation note:

Make sure hinged compartment panel (2) is correctly seated.

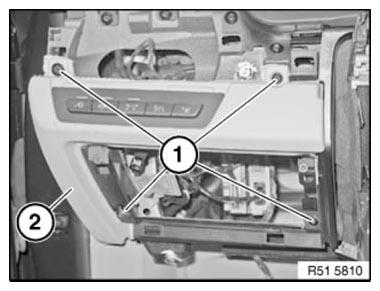

Fig 1: Identifying Hinged Compartment Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove CONTROL ELEMENT FOR DRIVER ASSISTANCE SYSTEM .
