51 45 388 Removing and installing/replacing decorative strip on storage compartment/DVD changer dashboard

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Actuate switch (2) and open storage compartment/DVD changer (1).

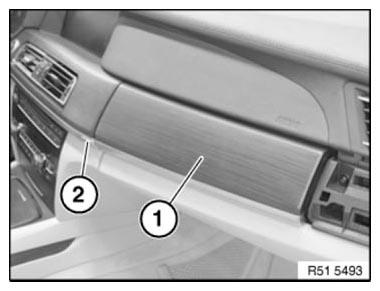

Fig 1: Identifying Storage Compartment/DVD Changer And Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and feed out decorative strip (2) towards front.

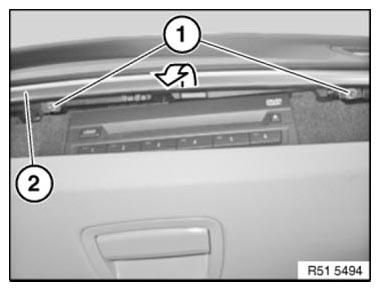

Fig 2: Feeding Out Decorative Strip With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install decorative strip in opened state. Retaining lugs (2) must be seated in marked guides.

Brackets (1) must be seated before thread locators (3).

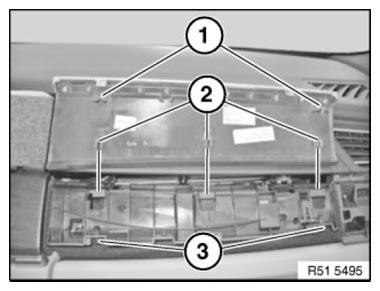

Fig 3: Identifying Brackets, Retaining Lugs And Thread Locators

Courtesy of BMW OF NORTH AMERICA, INC.
