51 23 110 Removing and installing/replacing engine compartment lid lock on left (up to 08/2008)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING in work area

Slacken screws (1) on connection (2). Tightening torque 51 61 4AZ .

NOTE: Component does not have to be removed.

Fig 1: Identifying Engine Compartment Lid Lock Screws And Connection

Courtesy of BMW OF NORTH AMERICA, INC.

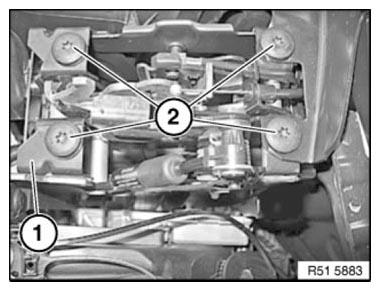

Release screws (2) on engine compartment lid lock (1).

Tightening torque 51 23 2AZ .

Fig 2: Identifying Engine Compartment Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

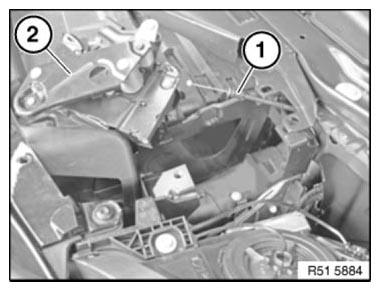

Disconnect Bowden cable (1).

Remove engine compartment lid lock (2) towards top.

Fig 3: Identifying Engine Compartment Lid Lock And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
