Positioning aid "A2" for front door, left ("B2" right)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Detach pre-stamped positioning aid from backing.
- Positioning aid "A2" front door, left (door lock, bottom)
- Positioning aid "B2" rear door, right (door lock, bottom)
If necessary, cut out pre-stamped cut-out for bore hole from positioning aid. Align positioning aid with printed marks (X and Y) and contact edge (2) to front door and press.
Seal must rest on positioning aid (1) during bonding.
X Start of bending radius
Y Recess for door lock
IMPORTANT:
- Do not grip bonding surface.
- It is not the time of the pressure, but rather the level of pressure (approx. 10... 15 N/cm2 ) that is decisive.
- Separation of seal after pressing destroys the adhesive layer.
NOTE:
After being pressed on gently, seal can be pulled off again up to 3 times. Do not dirty bonding surface.

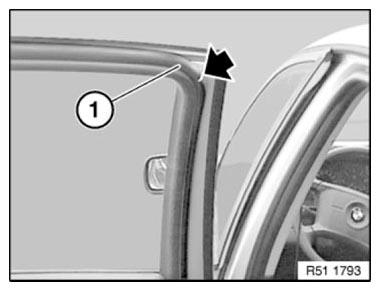

Suspend seal (1) with open lip pointing inwards over door. Pull protection of positioning aid (liner) off seal in sections.
Stick on seal (1) as follows:
- Position seal with color coding on door window frame at front top.
- Gently press seal without stretching up to start of positioning aids.
- Check positioning of seal, correct if necessary (sag max. 30 mm).
- Firmly press down seal vertically to bonding surface up to above-mentioned area.
- Gently press seal without stretching up to entrance area.
- Check positioning of seal, correct if necessary and firmly press.
- Pull remaining protective film (liner) off seal.
- Press remaining seal without stretching.
- Check positioning of seal, correct if necessary and firmly press.
Remove positioning aids and assemble rear door.
