51 71 100 Replacing all cooling air routings for radiator

Necessary preliminary tasks:

• Remove SUPPORT FOR FRONT BUMPER PANEL
• Remove BOTTOM SUPPORT  for front bumper panel

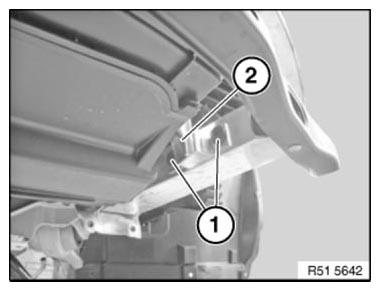

Undo screw connection (1) on V-braces (2).

Tightening torque 51 61 6AZ .

Fig 1: Identifying V-Braces Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

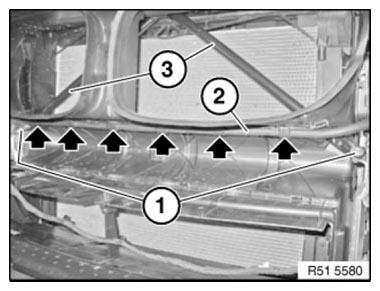

Undo bolt (1) on V-brace (3) on left or right.

Tightening torque 51 11 7AZ .

Maneuver out V-support (3) upwards.

Unclip hose pipe (2) for headlight cleaning system at marked points and set down safely.

Installation note:

Hose pipe (2) for headlight washer system high-pressure nozzle (right) must be correctly clipped into place at marked points.

Fig 2: Locating Hose Pipe Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

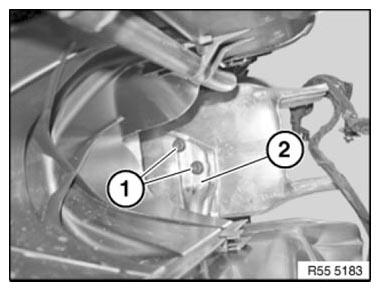

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 3: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

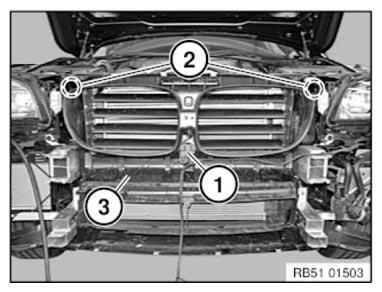

Release screws (1) on cross-member (2).

Tightening torque 51 11 2AZ .

Fig 4: Identifying Cross-Member And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

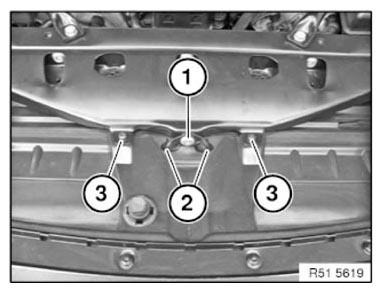

Release screws (1) on vertical connection (2).

Remove vertical connection (2).

Tightening torque 51 11 2AZ .

Fig 5: Identifying Vertical Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

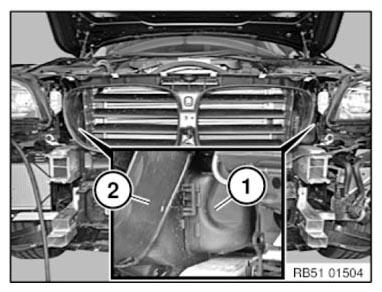

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Feed out cooling air routing (3).

Fig 6: Identifying Cooling Air Routing, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure air intake duct (1) is correctly fitted on cooling air routing (2)

Fig 7: Identifying Air Intake Duct And Cooling Air Routing

Courtesy of BMW OF NORTH AMERICA, INC.
