51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
Necessary preliminary work:
- Remove FRONT WHEEL .

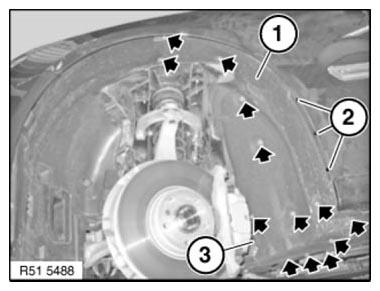

Unscrew all bolts.
Release expanding rivets (2).
Release expanding rivet (3).
Carefully feed out wheel arch cover (1) towards bottom.
Installation note:
If necessary, replace faulty expanding rivets.
Ensure wheel arch cover (1) is correctly seated.
