51 64 010 Removing and installing/replacing left or right V-support

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the V-support is not permitted (risk of damage to the body).

Necessary preliminary work:

Remove FRONT BUMPER PANEL.

Undo screw connection (1) on V-braces (2).

Tightening torque 51 61 6AZ .

Fig 1: Identifying Screw Connection And V-Braces

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolt (1) on V-brace (3) on left or right.

Tightening torque 51 11 7AZ .

Maneuver out V-brace (3) upwards.

Installation note:

Hose pipe (2) for headlight washer system high-pressure nozzle (right) must be correctly clipped into place at marked points.

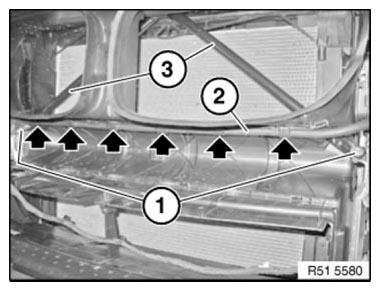

Fig 2: Identifying V-Brace, Bolt And Hose Pipe

Courtesy of BMW OF NORTH AMERICA, INC.
