51 48 060 Removing and installing sound insulation on left or right front door

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM

IMPORTANT: Risk of mixing up plugs for door lock and control unit!

Mark relevant plugs prior to removal.

Disconnect plug connection (1).

Feed door wiring harness (2) out of cable holders (3).

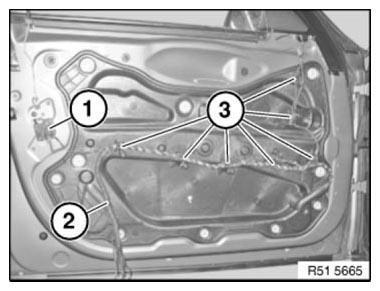

Fig 1: Identifying Plug Connection, Door Wiring Harness And Cable Holders

G06885952

Courtesy of BMW OF NORTH AMERICA, INC.

Release quick-release couplings.

Remove sound insulation (1).

Installation note:

If necessary, replace defective quick-release couplings.

Make sure quick-release couplings are installed in correct position.

Fig 2: Identifying Sound Insulation

G06885953

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Seal on sound insulation must not be damaged.

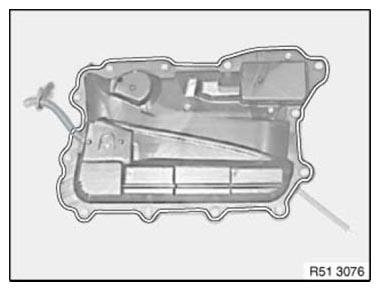

Fig 3: Identifying Seal Applying Area On Sound Insulation

G06885954

Courtesy of BMW OF NORTH AMERICA, INC.
