51 42... Replacing speaker trim on rear left or right door trim panel

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR MID-RANGE SPEAKER

Open plastic weld joints at marked points.

Unlock catches (1).

Remove speaker frame (2).

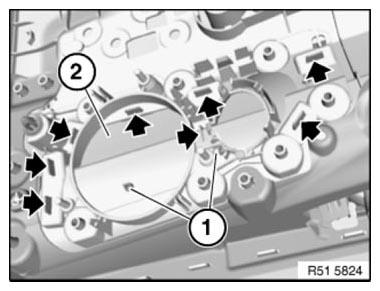

Fig 1: Identifying Catches And Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new loudspeaker finisher (2).

Catches (1) must be correctly seated in corresponding guides.

Secure retainers (3) as pictured to all marked plastic guides.

Speaker trim (2) must be secured without play on door trim panel.

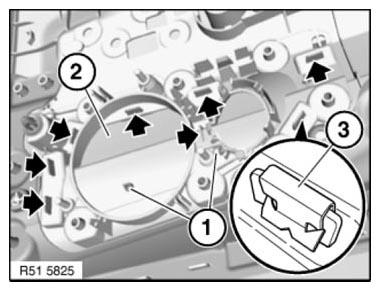

Fig 2: Identifying Catches, Speaker Trim And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
