51 21 140 Removing and installing/replacing complete lock cylinder in left or right front door

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove carrier for outer door handle. See REMOVING AND INSTALLING/REPLACING CARRIER FOR LEFT OR RIGHT OUTSIDE DOOR HANDLE WITHOUT LOCK CYLINDER .

Release screws (1).

Remove gearing cover (2).

Fig 1: Identifying Gearing Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press down latch mechanism (1) slightly.

Turn lock cylinder (2) in direction of latch mechanism (1) and remove.

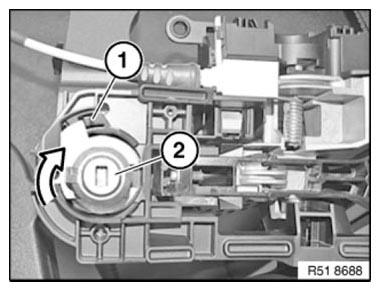

Fig 2: Turning Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
