51 11 183 Removing and installing/replacing ornamental grille for bumper trim (side)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip retaining lugs (1) and remove ornamental grille (2) towards front.

Installation note:

Retaining lugs (1) must not be damaged.

Fig 1: Removing Ornamental Grille With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement with vehicles as of 07/2012:

Release latch mechanisms (1) and remove trim bar from ornamental grille (2).

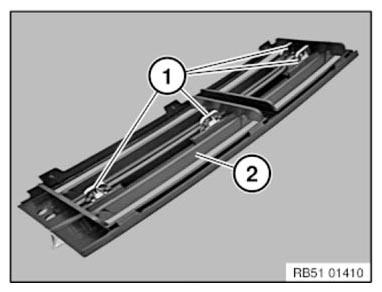

Fig 2: Identifying Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
